40ft/20ft Steel Sandwich Panel Expandable Prefabricated Small Modular 2 Bedroom Container House Waterproof Safe Modern Meeting

Option size	20ft,40ft,etc...We also had special size for 2.9M height
Main material	Galvanized steel structure with sandwich panel wall and doors, windows, etc.
Weight	3200kgs
Service life	30-40 years

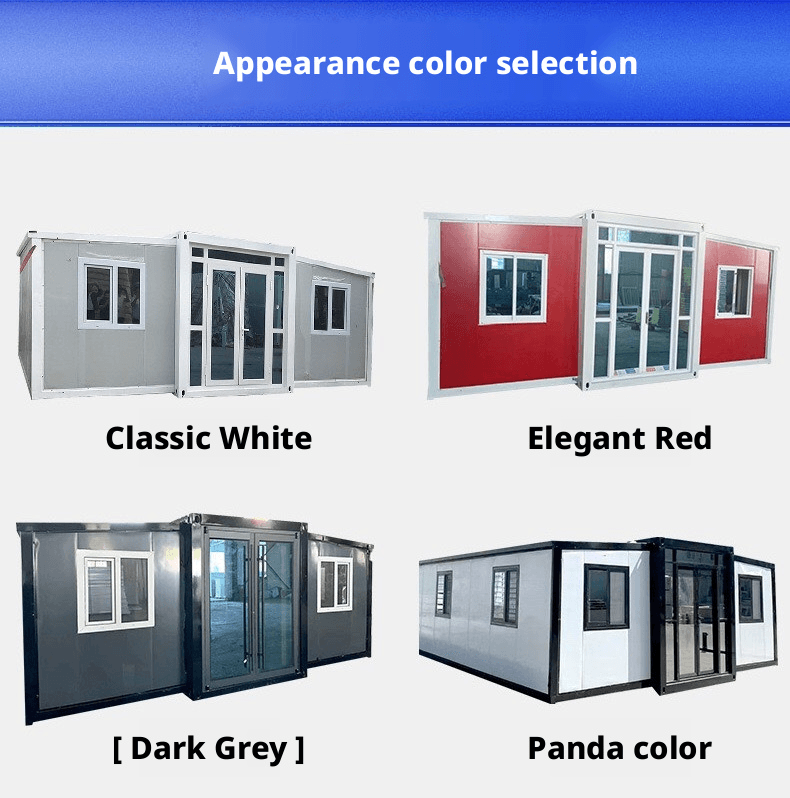

Color	White, blue, green, brown, or customized
Steel structure	3mm Hot galvanized steel structure with 4 corner casts and (1)18mm fiber cement board; (2)1.6mm PVC flooring; (3)50mm rock woll ,eps or PU sandwich panel (4)Galvanized steel base plate.
Columns	3mm Hot galvanized steel structure
Wall	50/75/100mm EPS/Rock wool/PU Sandwich Panel
Roof	3-4mm Hot galvanized steel structure with 4 corner casts and (1)Galvanized steel roof covering; (2)50mm -70mm eps sandwich panel or PU sandwich panel ; (3)50mm -70mm eps sandwich panel or PU sandwich panel ;
Door	Made of steel/aluminum frameDimension W870H2040mm, furnish with a handle lock with 3 keys or sliding glass door W15002000mm.
Window	Made of PVC/aluminum fame.Dimension W800*H1100mm, glazed with double glass in a thickness of 5/8/5mm.
Connection kits	PVC Connection kits for ceiling, floor and walls.
Electricity	3C/CE/CL/SAA Standard,with distribution box, lights, switch, sockets, etc.

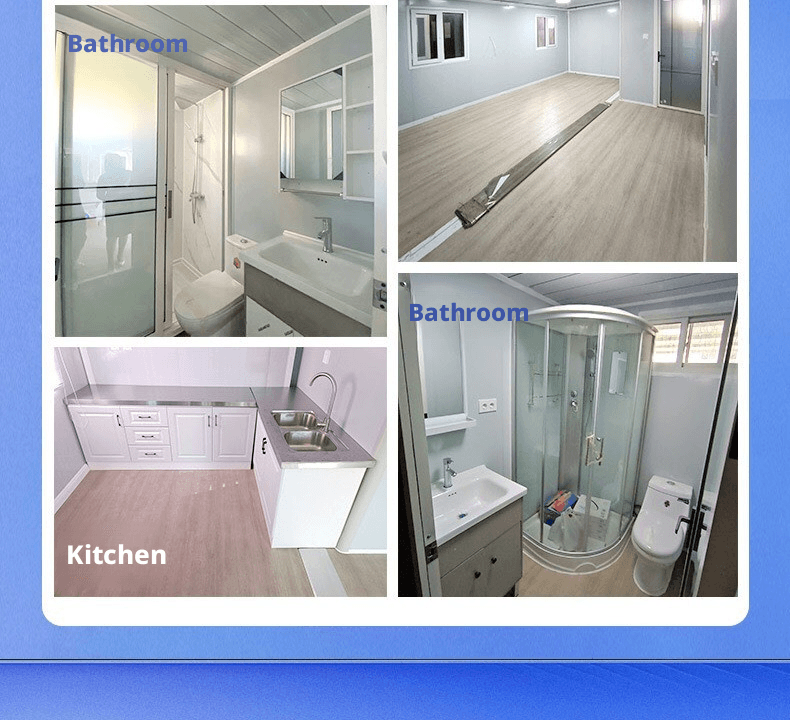

Optional Accessories	Furniture, sanitary, kitchen, A/C, electrical appliance for accomodation, office, dormitory, toliet, kitchen, bathroom, shower, steel roof, cadding panels, decorative material, etc.
Advantage	(1) Fast installation: 2 hours/set, save labor cost; (2) Anti-rust: all material use hot glavanized steel; (3) Waterproof: without wood ceiling,wall; (4) Fireproof:Fire rating A grade (5) Simple foundation:just need 12pcs concrete bolck foundation; (6) Wind-resistant(11 level) and anti-seismic(9 grade)

1. Do you provide on-site installation service?

We provide very detailed installation instruction drawings and videos for everyproject. For large projects, we will have both installation workers and supervisions onsite. The fee for the on-site service should be negotiated with clients.

2.What s your delivery time?

Normally, delivery time is 15 days after deposit received. For large order, the deliverytime should be negotiated. 3.How to control the quality of your product?

3.How to control the quality of your product?

a. quality of the design: think about possible problems in advance and provide ahigh-quality design solution. b. quality of the raw material: choose the qualified rawmaterial

4. How to deal with quality problems?

Warranty is 2 years. Within the warranty period, SlNoY will responsible for all qualityproblems caused by our production.

5. lf there is a clear service life of your products? lf have, how long?

Under conventional climate and environment, the service life of container housesteel frame is 20 years

6. What designs do you have in different climates (How can the products adopt todifferent climates)?

Strong wind region: improve the wind-resisting ability of the internal structure. Coldregion: increase the thickness of the wall, or use good insulation material, improveanti-pressure ability of the structure, Hiah corrosion region: use corrosion resistantmaterial, or paint anti-corrosion coating
