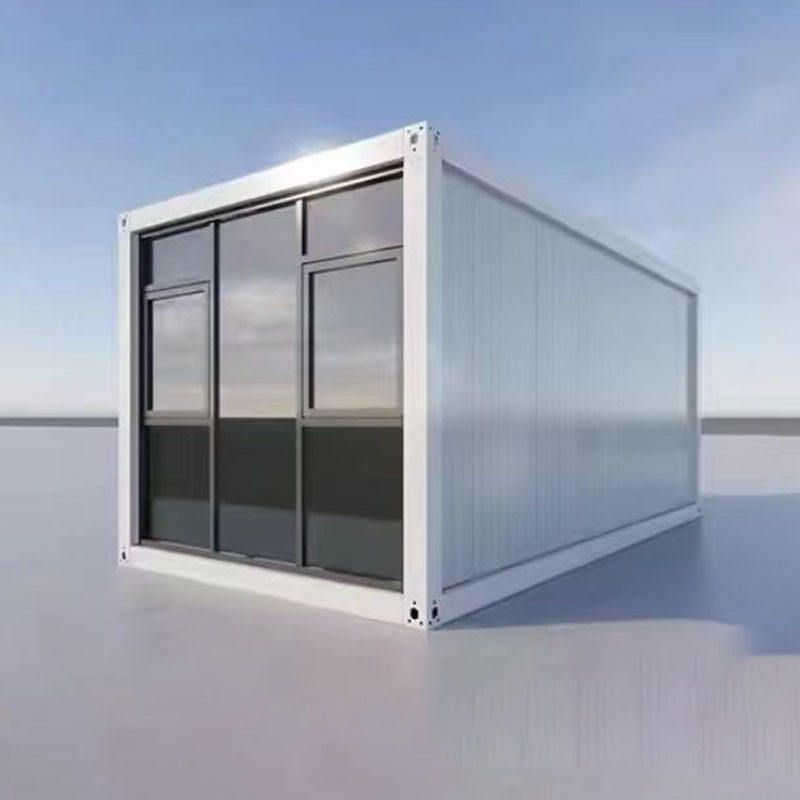

Yantai Container Mobile House

The Yantai container mobile house is a movable modular building transformed from containers, featuring stable structure, convenient installation, and optimized cost. It is widely used in fields such as construction site housing, cultural and tourism homestays, and commercial spaces.

I. Basic Types and Structural Features

Yantai container mobile houses mainly include types such as foldable containers, flat-panel containers, packing-box units, corrugated containers, and welded containers. Their core structure adopts a hot-dip galvanized steel welded frame with strong corrosion resistance. Some products use Q235B-grade hot-dip galvanized square tubes with a wall thickness of 2.0-3.0mm to ensure load-bearing performance. The wall structures are divided into two categories:

1. Traditional Structure: Single-layer color-coated steel sheets or ordinary sandwich panels with limited thermal insulation performance;
2. Composite Structure: Adopts a sandwich-type composite wall with high-density polyurethane (with a thermal conductivity as low as 0.022 W/(m·K)) or rock wool as the core layer. The outer layer uses aluminum-zinc alloy-coated steel sheets or fluorocarbon-coated steel sheets, significantly improving corrosion resistance and UV resistance, with a service life of up to more than 15 years.

II. Functional Advantages and Application Scenarios

1. Installation and Transportation Efficiency:
   • The on-site installation of foldable containers requires only 2-3 people to cooperate, and a single module can be installed in 2-3 hours, with the entire house completed in 3-5 days;
   • Low transportation cost: A 6-meter small vehicle can load 6 sets, and a 17.5-meter flatbed truck can load 20 sets; they can be stacked in multiple layers during storage to save space.
2. Cost Optimization:
   • Compared with traditional color-plate houses, foldable containers have lower comprehensive costs in terms of materials, installation, and transportation, and can be folded repeatedly more than 500 times with a long service life.
3. Safety and Adaptability:
   • They have fire-resistant, earthquake-resistant, wind-resistant, and rain-leak-proof properties, meeting emergency housing standards;
   • They are suitable for scenarios such as construction site housing, cultural and tourism homestays, commercial street containers, and mobile shop kiosks. For example, the Yantai Apple Warehouse mobile house can be quickly deployed in mountains and by lakesides through modular design as a characteristic accommodation unit.

III. Technological Innovation Directions

Some enterprises in Yantai (such as Shandong Yunsen Integrated Housing Co., Ltd.) are promoting innovations in the fields of materials, structures, and intelligence:

1. Material Upgrades: Adopt high-performance composite structures to improve thermal insulation performance;
2. Modular Design: Develop quick-lock and bolt connection systems to shorten the construction period;
3. Intelligent Integration: Built-in temperature and humidity sensors, intelligent fresh air systems, and pre-embedded water and electricity pipelines, supporting remote APP control to enhance the living experience.
