Shanxi Container House Processing

Shanxi container house processing focuses on modular design and standardized production, integrating high-strength steel with fireproof and thermal insulation materials to form a safe, durable, flexible, and efficient prefabricated building system.

I. Processing Enterprises and Production Capacity
Shanxi Xiangzu Mengren Building Materials Co., Ltd. is a representative enterprise in the province, boasting over 10 standardized production lines for packing boxes, foldable boxes, and fixed containers. It is equipped with a production workshop covering more than 30,000 square meters, producing 200 packing boxes daily and over 60,000 annually. Its product range includes movable board houses, light steel villas, and smart container houses, among others. The company has passed ISO9001 quality management system certification and EU CE certification, serving thousands of engineering projects for companies like China State Construction and China Railway Construction, forming an industrial chain integrating R&D, production, and sales.

II. Technical Parameters and Material Standards

1. Structural Safety: Utilizing galvanized cold-formed steel frames with column wall thicknesses of 2.5-3mm, the top and bottom ring beams form a steel hoop system, achieving an earthquake resistance intensity of 8 degrees. The roof live load is ≥0.5kN/㎡, and the floor load is ≥2.0kN/㎡, capable of withstanding heavy equipment or multi-layer stacking.
2. Fireproof and Thermal Insulation: The enclosure system uses Class A non-combustible materials (such as glass wool or rock wool with a bulk density of ≥60kg/m³), with a wall heat transfer coefficient K ≤ 0.40W/(㎡·K), adapting to the extreme temperature differences between winter cold and summer heat in Shanxi.
3. Durability and Sealing: The roof features a hidden gutter design to eliminate capillary leakage; the on-site assembly rate exceeds 95%, with no wet operations, allowing for immediate occupancy after overall hoisting and placement.

III. Product Types and Application Scenarios

1. Standard Packing Boxes: Measuring 6 meters in length, 3 meters in width, and 3 meters in height, they can be used singly or combined in multiple units, suitable for temporary dormitories on construction sites, project office spaces, and emergency disaster relief command centers.
2. Foldable Boxes and Quick-Assembly Boxes: They can be folded to one-third of their original volume during transportation and quickly expanded and assembled upon arrival at the site, saving transportation costs and time.

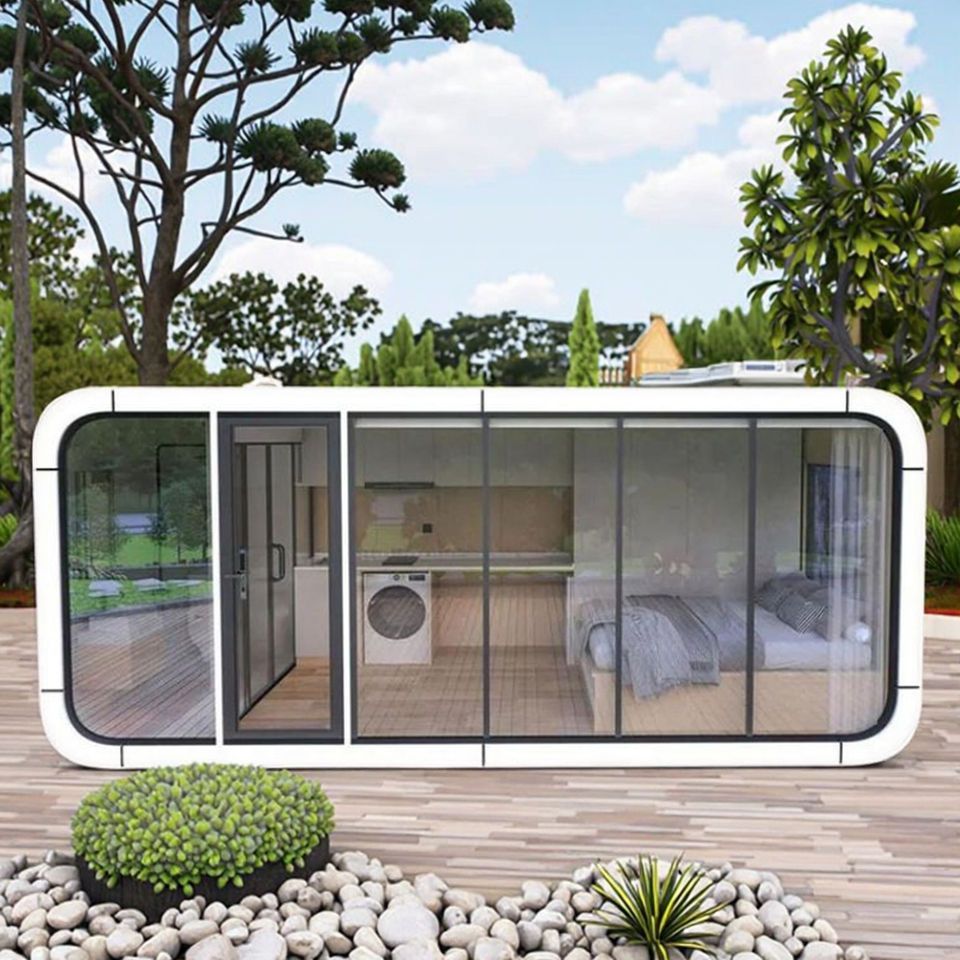

3. Smart Container Houses: Integrating water and electricity, decoration, and supporting functions, equipped with solar systems and smart temperature control devices, meeting the needs of high-end temporary buildings.

IV. Processing Flow and Quality Control
From steel cutting, welding, and anti-corrosion treatment to wall panel installation, standardized processes are adopted throughout. For example, steel components treated with galvanization have a service life of up to 20 years, and wall panels are prefabricated in the factory to reduce on-site construction errors. During installation, it is necessary to ensure that the ground level is higher than the surrounding area, excavate drainage ditches, and add an "A"-shaped canopy on top of the container to prevent rainwater backflow.
